Formaldehyde Dosing System

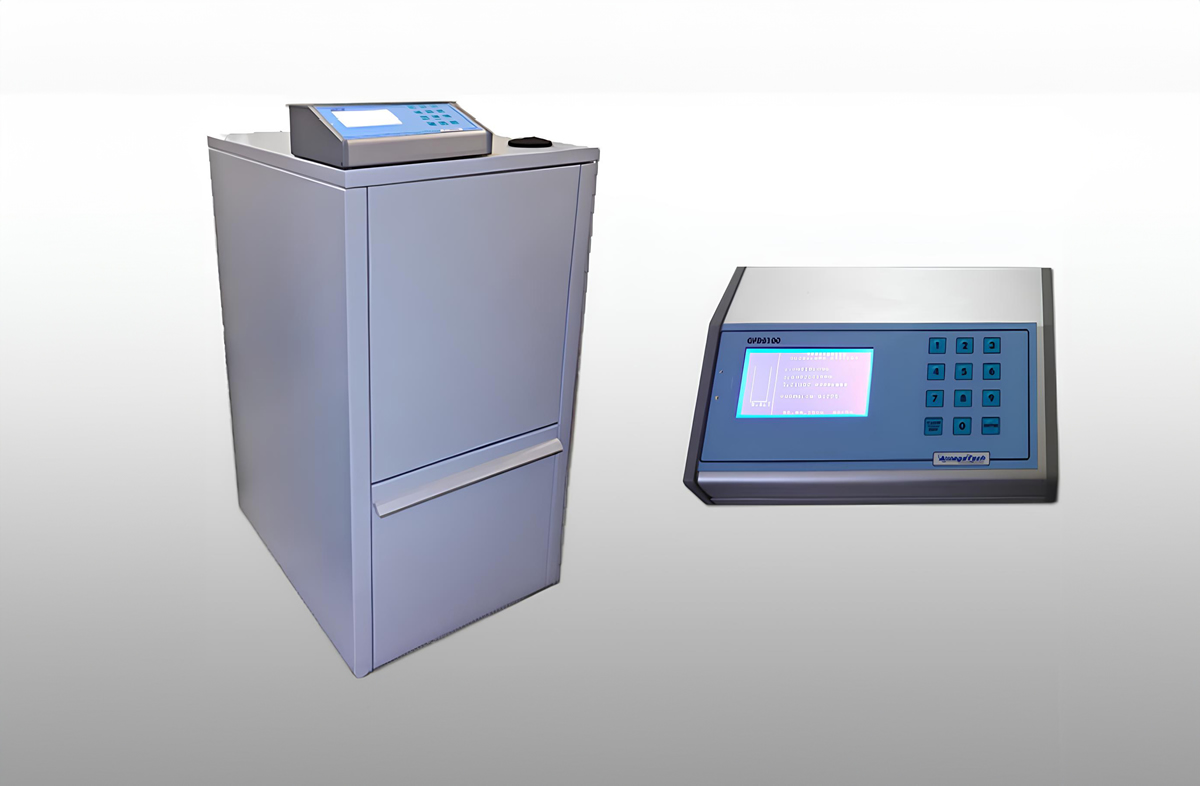

Automatic Formaldehyde Dosing System

• Product: Automatic Formaldehyde Dosing System
• Model: OFDS100
• Catalog No: 04-7500-000

Description

Automatic formaldehyde dosing system performs formalin preparation operation automatically within completely closed environment. Thanks to closed environment and automatic dosing, it allows always accurate and same mixture ratio.

By connecting the device to macroscopy cabin or to another desired area, the formalin is fed through the valve. It denies personal subjection and consequently, protects the health. Thanks to closed circuit, formalin ratio remains constant and yields extended time of use. By concentrated dosing performed by the device instead of procuring ready to use formalin, savings up to 90% can be made. Also, the enterprise saves up to 90% of storage area by obtaining concentrated formaldehyde.

Features

• All body and trays are made of 1 mm thickness AISI 304 stainless steel or oven painted galvanized sheet metal
• A digital screen and control panel to enter/monitor fluid level, dosing parameters and notifications
• Automatic 10% formalin mixture or user defined mixture option
• Tap water inlet, distilled water inlet and dosed formalin outlet connections
• Formaldehyde draw and buffered fluid draw equipment
• Solid powder input feature
• Mixing equipment to yield homogenous distribution and to prevent subsidence
• External or integrated pH meter to monitor pH level
• Power Requirement: 220-240 VAC 8A, 50-60 Hz
• Dimensions (w x l x h): 60 cm x 75 cm x 120 cm
• Weight: 120 kg
